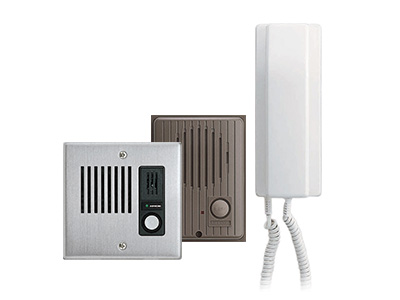

The IE-1AD Series is a chime tone intercom system with door release that supports one handset room station and one door station.


  • 4-tone chime from door
  • Call extension speaker or external
  • Signaling relay can be added
  • Adjustable chime volume
  • Door release
  • AC or DC powered (12 ˜ 16V AC or 12 ˜ 24V DC)
Power Source
12-16V AC, 180mA
12-24V DC, 160mA
AC Transformer for IE & EL-12S, PS-1225

Door calls in with 4-tone chime (vol. adjustable), pick up handset to reply

Door Release

Contact rating: 24V AC/DC, 500mA


Door to master: 2-cond., overall shield


Door to master: 500’(22AWG) 1,200’(18AWG)

Wire Type
For distance over 200m, please call Aiphone Pty Ltd.
AE7090220B: 200m Beige Ø0.9mm
AE7090220G: 200m Gray Ø0.9mm
AE7090210B: 100m Beige Ø0.9mm
AE7090210G: 100m Gray Ø0.9mm
