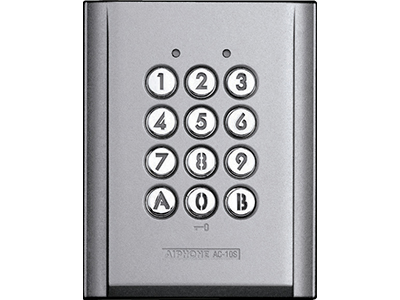

Stand alone access control keypad with up to 100 unique access codes.


  • Stand alone access keypad
  • AC-10S designed to match look of JP-DV, JO-DV, JK-DV, JF-DV
  • 12-digit backlit keypad
  • 2 relay outputs (NO & NC)
  • 100 Pin Code capacity
  • 2 request-to-exit inputs
  • 12 terminal wiring block for easy connections
Power Source
12~24V AC or DC
Power Consumption DC: Max. 70mA
AC: Max. 100mA
Door Release 2 Relays NO & NC
Contact Rating: 3A (resistive), 1A (inductive) @ 24V
Ingress Protection IP54 rated
Dimensions AC-10S: 125(H) x 98(W) x 33(D)mm
AC-10F: 132(H) x 117(W) x 5(D), (recess: 29)mm
