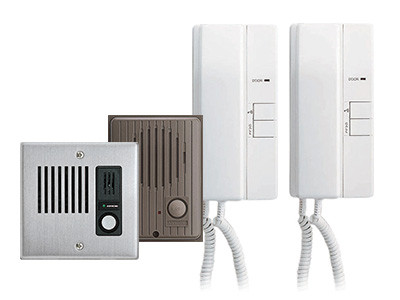

The IE-1GD Series is a chime tone intercom system with door release that supports up to three handset room stations and one door station.
Features:
|
Power Source
|
12-16V AC, 180mA 12-24V DC, 160mA AC Transformer for IE & EL-12S, PS-1225 |
| Communication |
Door calls in with 4-tone chime (vol. adjustable), pick up handset to reply, press CALL to call other inside stations with pre-tone and voice |
|
Door Release
|
Contact rating: 24V AC/DC, 500mA |
| Wiring |
Door to master: 2-cond., overall shield Master to subs: 6-cond., overall shield |
|
Distance
|
Door to master: 500’(22AWG) 1,180’(18AWG) Master to farthest sub: 250’(22AWG) 590’(18AWG) |
|
Wire Type
|
For distance over 200m, please call Aiphone Pty Ltd. |
