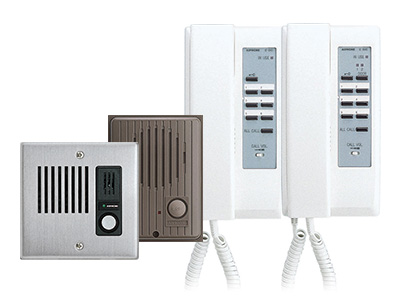

The IE-8MD Series is a chime tone intercom system with door release that supports up to six handset room stations and two door stations. The room stations allow for selective calling or All Call between rooms.
Features:
|
Power Source
|
12-16V AC, 900mA 12-18V DC, 500mA Intercom Only: 12V or18V DC power supply. AC Transformer 12V AC, 10VA or 16V AC, 14VA w/no load voltage 20V or less Intercom + EL-12S: 12V AC, 10VA only |
| Communication |
Door calls in with 4 or 2-tone chime and LED, pick up any handset to reply, press 1- 6 to call other station with pre-tone and voice or All Call, single channel, common talk system |
|
Door Release
|
Contact rating: 24V AC/DC, 350mA |
| Wiring |
Door to master: 2-cond. Master to subs: 4-cond. |
|
Distance
|
Door to master: 500’(22AWG) 1,180’(18AWG) Master to farthest sub: 245’(22AWG) 580’(18AWG) |
|
Wire Type
|
For distance over 200m, please call Aiphone Pty Ltd. |
