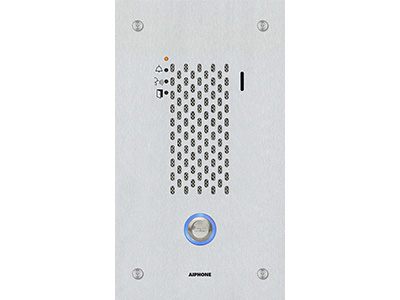

SIP Compatible Flush Mounted IP Door Station Vandal Resistant Stainless Steel Cover

SIP 2.0 Compliant

  • 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
  • Illuminated call button indicator
  • Slot for micro SD card (not provided by Aiphone)
  • IP65 rated, weather resistant (IP65)
  • 2 contact outputs
  • 6 trigger inputs
Power Source PoE (IEEE 802.3af class 0)
Power Draw 3.36 Watts
Audio Codec G.711 (μ-law, A law), G.722
Network Protocols IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security IEEE 802.1X
Operating Temp -40° – 140°F (-40° – 60°C)
Ingress Protection IP65
Impact Protection IK07
Dimensions 10-7⁄16″ H x 5-⅞” W
Mounting Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless Steel surface mount box.

IX-SSA Specification.pdf
IX-SSA_V108.zip
IX-SSA Instruction.pdf
