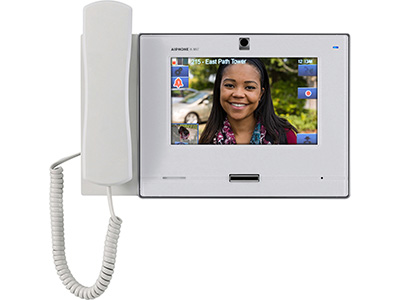

SIP Compatible IP Video Master Station 7″ Touchscreen and Privacy Handset (White)

SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.

  • ONVIF® Profile S Compliant
  • 802.3af PoE, Class 0
  • 7 TFT LCD touchscreen
  • Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
  • Hands-free or push-to-talk communication
  • 8 customizable speed dial buttons
  • Turn your master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours
  • Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
  • Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
  • 2 contact outputs, 4 trigger inputs
  • 8Ω 1/2 watt speaker output provides better coverage for announcements
  • 600Ω audio input.
  • 3 year warranty!
Power Source PoE (802.3af)
Power Draw 4.32 Watts
Camera ⅓” CMOS 720p
Min. illumination 5 lux
Audio Codec G.711 (μ-law, A law), G.722
Video Codec H.264/AVC, Motion JPEG
Network Protocols IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security IEEE 802.1X
Operating Temp -40° – 140°F (-40° – 60°C)
Dimensions 8-1⁄16″ H x 11″ W x 2-3⁄16″ D
Mounting Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.

IX-MV7-H-Spec.pdf
IX-MV7-Installation-Manual.pdf
IX-MV7_V108.zip
IX-QuickStart-Programming-Guide.pdf
