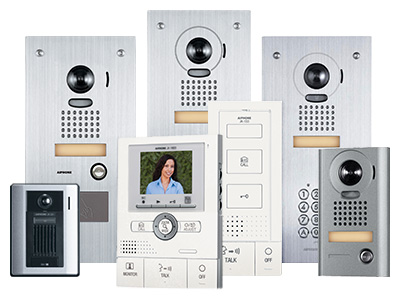

The JK Series is a PanTilt Zoom, open voice colour video intercom system. At 170 degrees, the camera offers nearly twice the viewing width as conventional video intercoms. Box kits are available with or without picture memory. The picture memory can manually or automatically record up to 240 images of visitors.The JK Series supports two inside stations and a single door station.

Features:

  • Quick and easy install – Only 2 wires!
  • No handset to pick up
  • Compact, attractive design complements most interiors
  • Hands-free (VOX) or push-to-talk (PTT) communication
  • High resolution colour TFT LCD monitor
  • Includes single N/O door release contact
  • Camera station can be monitored from inside
  • All monitors turn on when camera station calls in
  • Wide angle camera allows user to view up to 170° of the entire entry
  • Camera view features digital PanTilt and Zoom
  • Entry can be monitored without alerting visitors they are being viewed, even at night
  • Camera position and zoom can be set for call-in
  • Camera can be manually adjusted to compensate for bright illumination
  • Picture memory records up to 240 images (JK-1MED only)

Power Source 18V DC – Use PS-1820
Calling

Chime, image and audio approx. 45 sec.

Communication AUTOMATIC (hands-free) – to activate, momentarily push TALK button MANUAL (push-to-talk/release-to-listen) – to activate, push TALK button for 1 sec. or until talk LED turns on
Video Monitor Door to master: 2-cond., overall shield Master to subs: 6-cond., overall shield
Scanning Line 525 lines
Minimum illumination 5 Lux at 1′-5/8″ distance
Night Viewing Up to 1’-5/8″ from camera, with white LED projected, background beyond 1′-5/8″ cannot be seen
Door Release Contact rating: 24V AC/DC, 500mA Use RY-18L for larger contact rating
Wiring Door to master: 2-cond., mid cap, solid, non-shielded Master to sub: 4-cond., mid cap, solid, non-shielded
Distance Door to farthest master/sub master: 50m(0.65mmØ), 100m(1.0mmØ)
Master to IER-2: 75m(0.65mmØ) 150m(1.0mmØ)
Wire Type AE7090210B: 100m Beige Ø0.9mm
AE7090210G: 100m Gray Ø0.9mmJKW-BA: AE7120230B: 300m Beige Ø1.2mm
