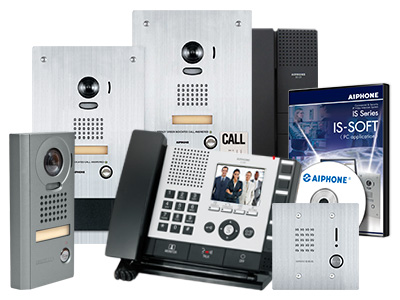

The IS Series is a network-based communication and all-in-one security control system featuring video entry security, internal communication, rescue assistance, paging, and bell/chime scheduling. The system can unlock doors remotely on a network, assist onsite visitors from an offsite phone, broadcast emergency announcements, and communicate using a standard or PC Master Station.

Features:

  • Uses new or existing CAT-5e / 6 network infrastructure
  • Program system functions via browser
  • Basic conversation plus full range of exchange functions: Time based call forwarding, scan monitoring, emergency call, priority call, video audio recording, paging, and scheduled zone paging
  • Transfer calls to outside phone lines
  • Wide angle camera (170°) with PanTilt & Zoom function
  • Composite video output from IS-MV / IS-CCU / IS-SCU
  • IP addressable stations available for easy network communication
  • PC master station records audio/video directly to PC
  • Forward failed calls automatically to another master or group of masters or an outside phone number if the called master does not answer
  • Transfer call-ins from a video door station to any standard or PC master station on the network for easy identification
  • Schedule Bells & Announcements: Program daily announcements by day, week, month, or year. Create different schedules for holiday breaks, or after hours
  • Pre-record or load up to 15 messages or sound tones
  • Create areas and zones to easily broadcast emergency announcements quickly
  • Quick and easy installation

Related Information

3 Part CSI Spec
CAD Drawings
How to Videos: Local Hardwired System Programming

Power Source IS-CCU, IS-SCU, IS-RCU, IS-IPC:  48V DC – Use IS-PU-S
IS-IPDV, IS-IPDVF, IS-IPMV:  24V DC – Use PS-2420 or PoE (802.3af)
Network Interface:  10 BASE-T / 100 BASE-TX Ethernet,  Protocol:  TCP, UDP,
IGMP (Multicast)
Bandwidth 320Kbps to 8Mbps

Estimate your bandwidth requirements here.

Software Processor: 2GHz or faster, RAM: minimum 1GB, Storage: 10MB or more (additional memory required for movie recording), Sound Card: 8-bit full duplex – DirectSound compatible, Display: 1024 x 786 or higher, Runtime: Microsoft.NET framework 2.0 or later, Network:  Wired 100Base-TX recommended, Operating System:  Windows XP (SP3), Windows Vista (SP1), or Windows 7
Connections RJ45 (10/100 Mbit Ethernet)
Calling Chime, image, and audio approx. 45 seconds
Video Monitor 3-1/2″ direct-view TFT colour LCD
Min. Illumination 5 Lux at 1′ distance
Night Viewing Up to 1′ from camera with white LED projected
Door Release Contact rating: 24V AC/DC, 500mA
CSI Specification IS Series CSI Specification
